Kawasaki K3V140DT — hydraulic pump Volvo EC290 | VOE14524052
About the pump

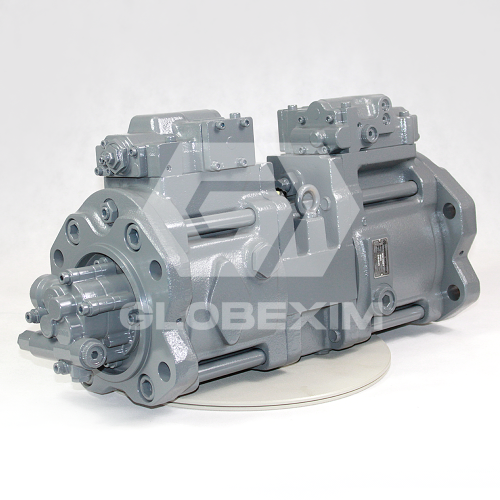

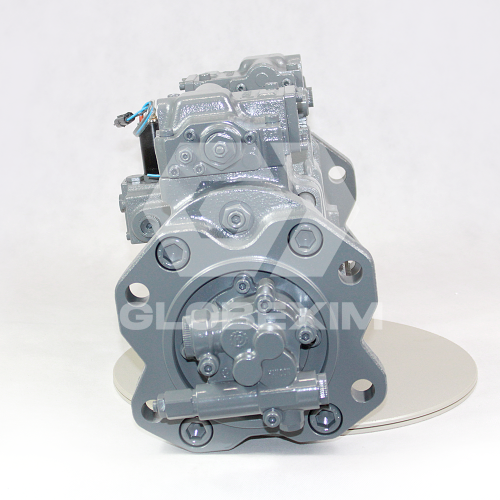

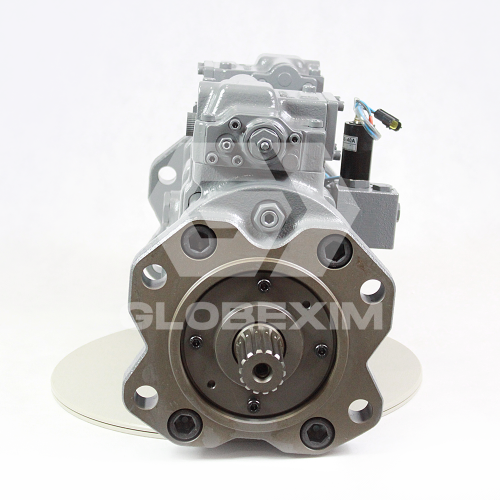

Axial piston hydraulic pump Kawasaki K3V140DT-1JER-9N04-1 — main pump of the hydraulic system for Volvo EC290, EC290B and EC290BLC excavators. Tandem-type pump with a displacement of 140 cm³/rev. OEM numbers: VOE14524052, 7220-00601. Cross references: VOE14524052 / SA7220-00601 / 14575661.
Technical specifications
| Parameter | Value |
|---|---|
| Series / Model | Kawasaki K3V140DT-1JER-9N04-1 |
| Type | Axial piston, tandem (DT) |
| Displacement | 140 cm³/rev |
| Rated pressure | 34.3 MPa (350 bar) |
| Peak pressure | 39.2 MPa (400 bar) |
| Max. speed | 2,500 rpm |
| Max. self-priming speed | 2,150 rpm |
| Max. input torque (tandem) | 1,120 N·m |
| Weight (tandem) | 160 kg |
| Body length (tandem) | 618 mm |
| Hydraulic fluid | Anti-wear hydraulic oil |
| Temperature range | −20°C … +95°C |
| Viscosity | 10–1,000 mm²/s (cSt) |
| Fluid cleanliness | NAS 1638 Class 9 (min.) |
| Drain pressure (rated/peak) | ≤ 0.1 MPa / ≤ 0.4 MPa (max. 0.1 s) |
Compatibility
- ▸Volvo EC290
- ▸Volvo EC290B
- ▸Volvo EC290BLC
- ▸Volvo MX295
- ▸Volvo SE280-3
Installation & warranty
Warranty period — 6 months from the date of sale. Warranty conditions: installation by an authorised service centre and a signed Acceptance Protocol. Before installation, please review the technical requirements: Installation FAQ →
FAQ
Delivery
The item is dispatched within 24 hours (business days) after receipt of 100% prepayment. Delivery to: Poland, EU countries, United Kingdom. Full details — Delivery →
| Base | |
| Technics | Volvo EC210 B, EC210 B LC, and EC240 crawler excavators |
| Brand: | replacement |
| Condition | New |
| Catalog number | VOE14571141, VOE14595621, VOE14531855 |
| Warranty | 6 months |
-
1600 €
Price provided without VAT
- Availability: In Stock
